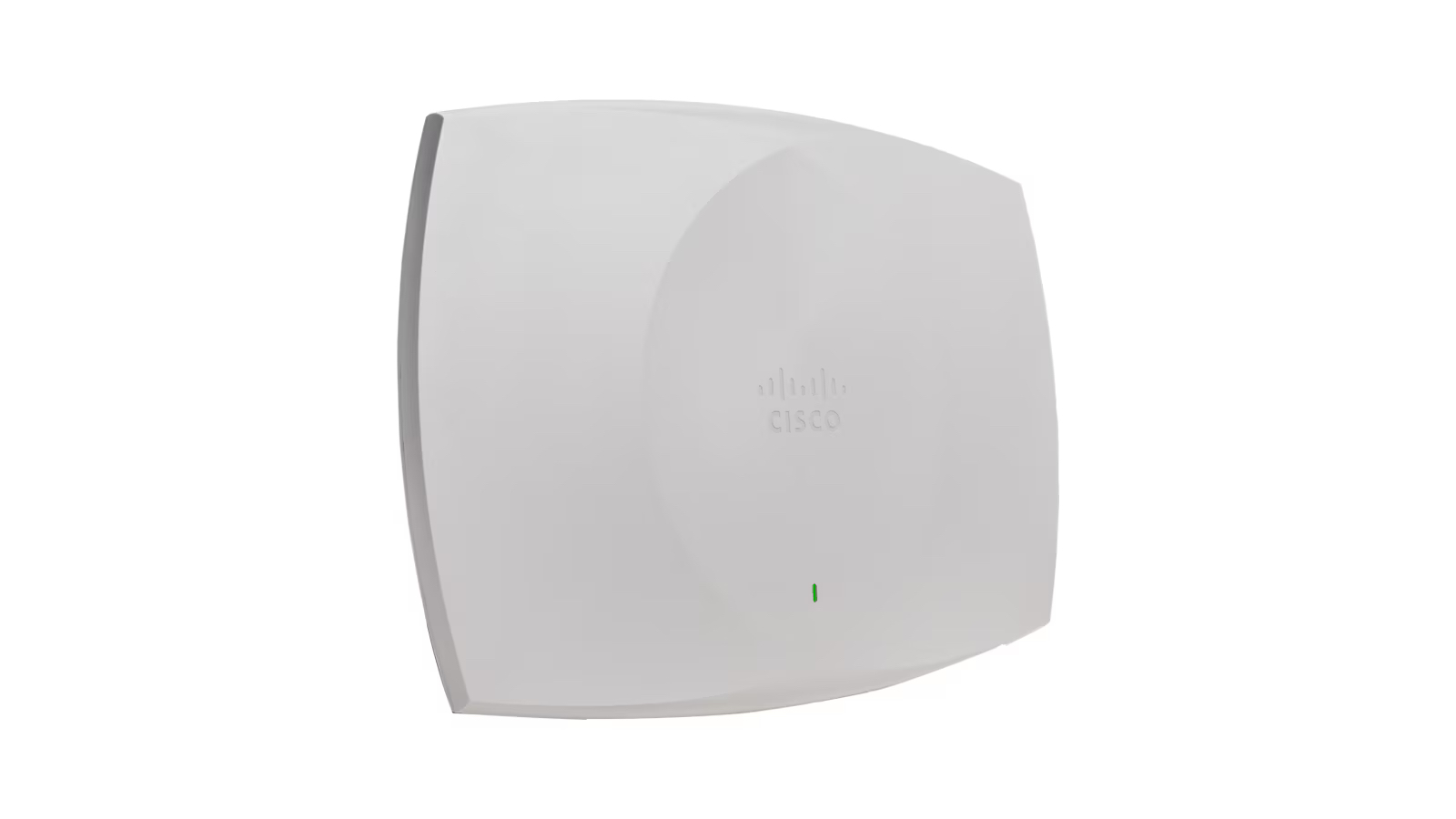

Cisco Wireless 9179F (W7,4 radio,3 band 4×4),Global

Name: Cisco Wireless 9179F (W7,4 radio,3 band 4x4),Global
SKU: CW9179F
Price: 7280.17 GBP
Availability: InStock

SKU: CW9179F Category: Licenses Tags: Licence, License

Original price was: £7,280.17 – £8,402.44.Current price is: £7,280.17 – £8,005.30.

CW9179F access point Wi-Fi 7 tri-band access point

Meraki Enterprise or Advanced Security License (for MR Access Points)

LIC-ENT-VAR

A license is required for this hardware device. The license permits the product to function, connect to the Dashboard, gives support and warranty.

If you would prefer a subscription license, please select a ‘no license’ option below and email or call for pricing.

Licence length *

Wireless License Type *

Clear

Available on back-order|Cisco have no stock in EMEA today. Backorder delay is 114 days

Description
Additional information
Features
Specifications
MR Comparison
Mounting options
Data Sheets
Questions & Answers

Overview

The Cisco Wireless CW9179F is the industry’s first enterprise-grade, Wi-Fi 7 certified high-density access point, made specifically for connecting large public venues. Connect every corner with this convertible indoor-outdoor unit, suitable for stadiums, arenas, festivals, airports, and anywhere where your audience needs reliable and high-performing connectivity. The CW9179F packs a lot of flexibility in an all-in-one integrated unit with software configurable beam patterns and coverage where you need it.

The industry’s first enterprise grade Wi-Fi 7 large public venue access point is designed to connect every corner, with the high-density wireless coverage your users demand and flexibility in deployment, management, and licensing.

Simplify your stack with Cisco Networking Subscription

Cisco Networking Subscription offers flexible licensing for on-premises, cloud, or hybrid management using the same licenses, service levels, and hardware. Align renewal dates to your cost-center needs, add licenses, and upgrade entitlements mid-term without changing renewal dates. Unified licenses deliver features from the best of Meraki and Catalyst, aiming to deliver equivalent functionality across all deployment models. Invest now to support your current and future business needs.

How it Works

Unified hardware - Unified hardware eliminates the need for regulatory domains and enables either on-premises or cloud management with one license type.
Intelligent identification - Access point identifies your network management type during onboarding, saving you time and effort.
Flexible management - Convert your deployment and management type as your network scales or your strategy changes without purchasing new hardware or licensing.
Cisco Networking Subscriptions - Manage your network on premises, through cloud-based monitoring, or entirely within the cloud without the need for different license types.

Product Highlights

Wi-Fi 7 for large public venues
Convertible, indoor/outdoor model with 6GHz support outdoors
Configurable antennas for specific coverage
Dual 10G Multigigabit Ethernet
Built-in GNSS/GPS
AP power optimizations
Accelerometer
Application hosting
Container support for applications

Additional information

Weight	4.11 kg
Dimensions	35.22 × 27 × 7.62 cm
Wi-Fi Standard	Wi-Fi 7

Meraki Enterprise or Advanced Security License (for MR Access Points)

Licence length	1yr, 3yr, 5yr, 7yr, 10yr, No License Ordered, 1day (for per-device licensing model only)
Wireless License Type	MR Advanced, MR Enterprise

Features

Aggregate frame rate of up to 9 Gbps*

A 6 GHz 4×4:4, 5 GHz 4×4:4 and 2.4 GHz 4×4:4 radio offer a combined tri–radio aggregate frame rate of 24 Gbps*. Technologies like transmit beamforming and enhanced receive sensitivity allow the CW9179F to support a higher client density than typical enterprise-class access points, resulting in better performance for more clients from each AP.

* Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE 802.11be operation.

Multi Link Operation (MLO)

With support for features of 802.11be, the CW9179F can operate in multiple bands simultaneously to achieve higher throughput and improved SLA. This increases the total network performance and improves the end-user experience.

Multi User Multiple Input Multiple Output (MU-MIMO)

With support for features of 802.11be, the CW9179F offers DL and UL MU-MIMO and OFDMA for more efficient transmission to multiple clients. Especially suited to environments with numerous mobile devices, MU-MIMO and OFDMA enable multiple clients to receive data simultaneously. This increases the total network performance and improves the end-user experience.

Bluetooth Low Energy Beacon and Scanning Radio

An integrated Bluetooth radio provides seamless deployment of BLE Beacon functionality and effortless visibility of Bluetooth devices. The CW9179F enables the next generation of location-aware applications while future-proofing deployments, ensuring it’s ready for any new customer engagement strategies.

Automatic Cloud-Based RF Optimization

The RF data collected by the dedicated fourth radio is continuously fed back to the Meraki cloud. This data is then used to automatically tune the channel selection, transmit power, and client connection settings for optimal performance under even the most challenging RF conditions.

Integrated Enterprise Security and Guest Access

The CW9179F features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and Enterprise authentication with 802.1X and Active Directory integration provide wired-like security while still being easy to configure. CW9179F will also support 192-bit encryption along with WPA3 support for added security of the wireless network. One-click guest isolation provides secure, Internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.

Dedicated Scanning Radio Delivers 24×7 Air Marshal and RF analytics

The CW9179F’s dedicated tri-band scanning and security radio continually assesses the environment, characterizing RF interference and containing (in 2.4GHz and 5GHz only, since 6GHz mandates PMF) wireless threats like rogue access points. There’s no need to choose between wireless security (AirMarshal), advanced RF analysis, and serving client data – a dedicated fourth radio means that all functions occur in real-time, without any impact on client traffic or AP throughput.

Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) Integration

Meraki Systems Manager natively integrates with the CW9179F to offer automatic, context-aware security. Meraki Systems Manager’s self-service enrollment helps to rapidly deploy MDM without installing additional equipment, and then dynamically tie firewall and traffic shaping policies to client posture.

Application-Aware Traffic Shaping

The CW9179F includes an integrated layer 7 packet inspection, classification, and control engine, enabling the configuration of QoS policies based on traffic type, helping to prioritize mission-critical applications while setting limits on recreational traffic like peer-to-peer and video streaming. Policies can be implemented per network, per SSID, per user group, or per individual user for maximum flexibility and control.

Voice and Video Optimizations

Industry-standard QoS features are built-in and easy to configure. Wireless Multimedia (WMM) access categories, 802.1p, and DSCP standards support, all ensure important applications get prioritized correctly, not only on the CW9179F but on other devices in the network. Unscheduled Automatic Power Save Delivery (U-APSD) and the new Target Wait Time feature in 802.11ax clients ensure minimal battery drain on wireless VoIP phones.

Self-configuring, Self-Maintaining, Always Up-to-Date

When plugged in, the CW9179F automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. Administrators can schedule automatic firmware upgrades for their dashboard network seamlessly. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.

Meraki Health

CW9179F will support all the latest and greatest analytics to provide machine learning-based anomaly detection, server root cause analysis, wireless client scoring based on performance and connectivity metrics and network benchmarking for networks of similar size and vertical. Along with these features, CW9171I will provide advanced location analytics via API and graphs in the dashboard to provide a clear picture of client density and their movement across the floor plan.

Choice of Mode

Cisco Wireless 9179F Series Access Points can be managed either on-premises with Catalyst 9800 Wireless Lan Controllers (WLC) or cloud-managed through the Meraki dashboard. Customers have the flexibility to deploy these access points in one mode and migrate to the other mode in the future.

Specifications

Radios

Wi-Fi 7 802.11be on all three radios
2.4 GHz + 5 GHz + 6 GHz (all 4×4:4)
Dedicated scan/aux radio and IoT (BLE 6) radio

Antenna

2.4 GHz: Peak gain 6dBi, internal antenna, directional
5 GHz: Peak gain 12dBi, internal antenna, directional
6 GHz: Peak gain 12dBi, internal antenna, directional
IoT: Peak gain 6dBi, internal antenna, omnidirectional

802.11be Capabilities

4×4 + 4×4 uplink/downlink MU-MIMO with 4 spatial streams each (5 GHz)
4×4 uplink/downlink MU-MIMO with four spatial streams (2.4 and 6 GHz)
4096 QAM
Multilink operation
Preamble puncturing
Uplink/downlink OFDMA
TWT
BSS coloring
Maximal Ratio Combining (MRC)
20-, 40-, 80-, 160- and 320-MHz channels (6 GHz)
20-, 40-, 80-, and 160-MHz channels (5 GHz)
20-MHz channels (2.4 GHz)
PHY data rates: in Quad radio mode, up to 24 Gbps (4×4 320 MHz on 6 GHz, 4×4 + 4×4 160 MHz on 5 GHz, and 4×4 20 MHz on 2.4 GHz); in Tri radio mode, up to 18 Gbps (4×4 320 MHz on 6 GHz, 4×4 160 MHz on 5 GHz, and 4×4 20 MHz on 2.4 GHz) or PHY data rates up to 23 Gbps (4×4 320 MHz on 6 GHz, 4×4 160 MHz on 5 GHz and 4×4 160 MHz on 5 GHz)
Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
Wi-Fi Protected Access 3 (WPA3) support

802.11ax Capabilities

4×4 + 4×4 uplink/downlink MU-MIMO with four spatial streams each (5 GHz)
4×4 uplink/downlink MU-MIMO with four spatial streams (2.4 and 6 GHz)
Uplink/downlink OFDMA 1024 QAM
TWT
BSS coloring MRC
802.11ax beamforming
20, 40, 80, and 160 MHz channels (5 and 6 GHz)
20 MHz channels (2.4 GHz)
PHY data rates up to 10.2 Gbps (4×4 160 MHz on 6 GHz, 4×4 + 4×4 80 MHz on 5 GHz, and 4×4 20 MHz on 2.4 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 DFS
CSD support WPA2/WPA3 support

802.11ac

4×4 + 4×4 downlink MU-MIMO with 4×4 spatial streams
MRC
802.11ac beamforming
20, 40, 80, and 160 MHz channels
PHY data rates up to 3.4 Gbps (dual 4×4 160 MHz on 5 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 DFS
CSD support WPA2/WPA3 support

Power

802.3bt Cisco Universal PoE (Cisco UPOE®)
802.3at Power over Ethernet Plus (PoE+)
802.3af PoE (only for configuring staging, all radios off)
(Or) Cisco Power Injector – CW-INJ-8

Note: Actual power consumption may vary depending on the AP usage.

Interfaces

2x 100M/1000M/2.5G/5G/10G Multigigabit Ethernet (RJ-45) uplink
Management console port (RJ-45) with default speed of 115200 bps

Mounting

Included AP bracket

Environment

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
Nonoperating (storage) altitude test: 25˚C (77°F) at 15,000 ft (4600 m)
Operating temperature: 32° to 122°F (0° to 50°C)
Operating humidity: 10% to 90% (non-condensing)
Operating altitude test: 40˚C (104°F) at 9843 ft (3000 m)
Radio operation derated for 104˚F to 122˚F (40˚C to 50˚C)

Reliability

Mean time between failure (MTBF): 842,342 hrs at 25°C operating temperature
Mean time between failure (MTBF): 349,710 hrs at 50°C operating temperature

Physical Dimensions (without mounting brackets)

18.7 x 13 x 2.9 in. (47.5 x 33 x 7.3 cm)
Weight: 10 lb. (4.54 kg)

Security

Integrated layer 7 firewall with mobile device policy management
Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
Flexible guest access with device isolation
VLAN tagging (802.1q) and tunneling with IPsec VPN
PCI compliance reporting
WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 – Personal**, WPA3 – Enterprise**, WPA3 – Enhanced Open (OWE)***
EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
TKIP and AES encryption
Enterprise mobility management (EMM) and Mobile device management (MDM) integration
Cisco ISE integration for guest access and BYOD posturing

Quality of Service

Advanced power save (U-APSD)
WMM access categories with DSCP and 802.1p support
Layer 7 application traffic identification and shaping

Mobility

PMK, OKC, and 802.11r for fast layer 2 roaming
Distributed or centralized layer 3 roaming

Analytics

Embedded location analytics reporting and device tracking
Global layer 7 traffic analytics reporting per network, per device, and per application

LED Indicators

One power/booting/firmware upgrade status
Ethernet LED

Regulatory

RoHS
For additional country-specific regulatory information, please contact Meraki sales

Warranty

Lifetime hardware warranty

Ordering Information

CW9179F Access Point
CW-INJ-8: Multigigabit 802.3bt Power over Ethernet Injector (power cables sold separately)

Power cord – MA-PWR-CORD-XX (XX Country Code) should be ordered separately for the Ethernet injector

Note: Cisco Subscription or Meraki access point license required

MR Comparison

	Usage	Radios	Interface	Power	Performance Features	Cloud Controlled price (£) of base model hardware
MR20 (EOL)	Basic wireless, very low-density deployments	1 × 802.11b/g/n 1 × 802.11a/n/ac 1.3 Gbit/sec max rate 2×2:2 MU-MIMO with beamforming	1 × Gigabit Ethernet port	802.3af PoE DC power adapter	2×2:2 MU-MIMO Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	MR20 is End Of Sale
MR28	Basic wireless, very low-density deployments	1 × 802.11b/g/n 1 × 802.11a/n/ac 1 × 802.11a/n/ac/ax 1.5 Gbit/sec max rate 2×2:2 MU-MIMO with beamforming	1 × Gigabit Ethernet port	802.3af PoE	2×2:2 MU-MIMO Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	From: Original price was: £455.43.Current price is: £223.68. +VAT (£270.65 incl. VAT)
MR30H (EOL)	In-room hotel or dormitory deployments that must service IP-enabled devices	1 × 802.11b/g/n 1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 1.3 Gbit/sec max rate 2×2:2 MU-MIMO with beamforming	1 × Gigabit Ethernet port 1 × Gigabit Ethernet LAN port with 802.3af PoE 3 × Gigabit Ethernet LAN ports	802.3af PoE	2×2:2 MU-MIMO Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	MR30H is End Of Sale
MR33 (EOL)	Basic 802.11ac Wave 2 for futureproof deployments	1 × 802.11b/g/n 1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 1.3 Gbit/sec max rate 2×2:2 MU-MIMO with beamforming	1 × Gigabit Ethernet port	802.3af PoE DC power adapter	2×2:2 MU-MIMO Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	MR33 is End Of Sale
MR36	High-performance Wi-Fi 6 (802.11ax) to futureproof deployments, with UL/DL MU-MIMO and OFMDA	1 × 2.4 Ghz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 1.7 Gbit/sec max rate 2×2:2 MU-MIMO with beamforming	1 × Gigabit Ethernet port	802.3af PoE DC power adapter	2×2:2 MU-MIMO an d OFDMA 160 MHz Channels** Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	From: Original price was: £724.07.Current price is: £355.63. +VAT (£430.31 incl. VAT)
MR36H	In-room hotel or dormitory deployments that must service IP-enabled devices	1 × 802.11b/g/n 1 × 802.11b/g/n/ac 1 × 802.11b/g/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 1.3 Gbit/sec max rate 2×2:2 MU-MIMO with beamforming	1 × Gigabit Ethernet port (uplink) 1 × Gigabit Ethernet LAN port with 802.3af PoE 2 × Gigabit Ethernet LAN ports 1 x passthrough port (non-managed)	802.3af PoE	2×2:2 MU-MIMO Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	From: Original price was: £859.38.Current price is: £434.20. +VAT (£525.38 incl. VAT)
MR42 (EOL)	General purpose 802.11ac Wave 2 for campus and enterprise	1 × 802.11b/g/n 1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 1.9 Gbit/sec max rate 3×3:3 MU-MIMO with beamforming	1 × Gigabit Ethernet port	802.3at/802.3af PoE DC power adapter	3×3:3 MU-MIMO Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	MR42 is End Of Sale
MR42E (EOL)	General purpose wireless, challenging RF, or focused coverage scenarios	1 × 802.11b/g/n 1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 1.9 Gbit/sec max rate 3×3:3 MU-MIMO with beamforming	1 × Gigabit Ethernet port	802.3af PoE DC power adapter	3×3:3 MU-MIMO Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering Removable antennas	MR42E is End Of Sale
MR44	High performance, Wi-Fi 6 (802.11ax) with 2.5Gbps Multigigabit Ethernet for medium density campus and enterprise, with UL/DL MU-MIMO and OFMDA	1 × 2.4 Ghz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 3 Gbit/sec max rate 2×2:2 + 4×4:4 MU-MIMO with beamforming	1 × 100/1000/2.5G BASE-T Ethernet (RJ45)	30W max (802.3at) or 15W max (802.3af) – low power mode DC power adapter	2.4GHz: 2 x 2:2 + 5GHz: 4 x 4:4 UL/DL MU-MIMO) and OFDM 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax) Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering Removable antennas	From: Original price was: £1,178.54.Current price is: £578.84. +VAT (£700.40 incl. VAT)
MR45 (EOL)	High performance Wi-Fi 6 (802.11ax) with Multigigabit Ethernet for high density campus and enterprise, with MU-MIMO and OFMDA	1 × 2.4 Ghz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 3.5 Gbit/sec max rate 4×4:4 MU-MIMO with beamforming	1 × 2.5 Gbps Multigigabit Ethernet port	802.3af PoE DC power adapter	4×4:4 MU-MIMO and OFMDA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	MR45 is End Of Sale
MR46	High-performance, Wi-Fi 6 (802.11ax) with Multigigabit Ethernet for high density campus and enterprise, with UL/DL MU-MIMO and OFMDA	1 × 2.4 Ghz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 3.5 Gbit/sec max rate 4×4:4 MU-MIMO with beamforming	1 × 2.5 Gbps Multigigabit Ethernet port	802.3af PoE DC power adapter	4×4:4 MU-MIMO a nd OFDMA 80 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	From: Original price was: £1,713.40.Current price is: £841.54. +VAT (£1,018.26 incl. VAT)
MR46E	High-performance, Wi-Fi 6 (802.11ax) with Multigigabit Ethernet for high density campus and enterprise, with UL/DL MU-MIMO and OFMDA	1 × 2.4 Ghz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 2.98 Gbit/sec max rate 4×4:4 MU-MIMO with beamforming	1 × 2.5 Gbps Multigigabit Ethernet port	802.3af PoE DC power adapter	4×4:4 MU-MIMO a nd OFDMA 80 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering Removable antennas	From: Original price was: £1,713.40.Current price is: £755.18. +VAT (£913.77 incl. VAT)
MR52 (EOL)	Highest performance 802.11ac Wave 2 for high density campus, enterprise, and MU-MIMO	1 × 802.11b/g/n 1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 2.5 Gbit/sec max rate 4×4:4 MU-MIMO with beamforming	2 × Gigabit Ethernet port	802.3af PoE DC power adapter	4×4:4 MU-MIMO a nd OFDMA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	MR52 is End Of Sale
MR53 (EOL)	Highest performance 802.11ac Wave 2 with Multigigabit for high density campus, enterprise, and MU-MIMO	1 × 802.11b/g/n 1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 2.5 Gbit/sec max rate 4×4:4 MU-MIMO with beamforming	1 × 2.5 Gbps Multigigabit Ethernet port 1 × Gigabit Ethernet port	802.3af PoE DC power adapter	4×4:4 MU-MIMO a nd OFDMA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	MR53 is End Of Sale
MR53E (EOL)	Performance-critical wireless for high-density, challenging RF, or focused coverage scenarios	1 × 802.11b/g/n 1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 2.5 Gbit/sec max rate 4×4:4 MU-MIMO with beamforming	1 × 2.5 Gbps Multigigabit Ethernet port 1 × Gigabit Ethernet port	802.3af PoE DC power adapter	4×4:4 MU-MIMO a nd OFDMA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering Removable antennas	MR53E is End Of Sale
MR55 (EOL)	High performance Wi-Fi 6 (802.11ax) with Multigigabit Ethernet for high density campus, enterprise, with MU-MIMO and OFDMA	1 × 2.4 Ghz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 5.9 Gbit/sec max rate 8×8:8 MU-MIMO with beamforming	1 × 5 Gbps Multigigabit Ethernet port	802.3af PoE DC power adapter	8×8:8 MU-MIMO a nd OFDMA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	MR55 is End Of Sale
MR56	Ultra High-performance, Wi-Fi 6 (802.11ax) with Multigigabit Ethernet for high density campus and enterprise, with UL/DL MU-MIMO and OFMDA	1 × 2.4 GHz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 5.9 Gbit/sec max rate 8×8:8 MU-MIMO with beamforming	1 × 5 Gbps Multigigabit Ethernet port	802.3af PoE DC power adapter	8×8:8 MU-MIMO a nd OFDMA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	MR56 is End Of Sale
MR57	Ultra High-performance, Wi-Fi 6E (802.11ax) with 6GHz band with Multigigabit Ethernet for high density campus and enterprise, with UL/DL MU-MIMO and OFMDA	1 × 2.4 GHz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × 6 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 7.78 Gbit/sec max rate 4 ×4: 4 MU-MIMO with beamforming	2 × 5 Gbps Multigigabit Ethernet port	802.3bt PoE DC power adapter	4×4:4 MU-MIMO a nd OFDMA 80 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	From: Original price was: £2,543.24.Current price is: £1,640.39. +VAT (£1,984.87 incl. VAT)
CW9162I-MR	Ultra High-performance, Wi-Fi 6E (802.11ax) with 6GHz band with Multigigabit Ethernet to futureproof deployments, with UL/DL MU-MIMO and OFMDA	1 × 2.4 GHz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × 6 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 3.9 Gbit/sec max rate 2 ×2:2 MU-MIMO with beamforming	1 × 2.5 Gbps Multigigabit Ethernet port	802.3at PoE DC power adapter	2x2:2 MU-MIMO a nd OFDMA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	From: Original price was: £1,136.30.Current price is: £510.60. +VAT (£617.83 incl. VAT)
CW9163E-MR	Ultra High-performance, Wi-Fi 6E (802.11ax) with 6GHz band with Multigigabit Ethernet to futureproof deployments, with UL/DL MU-MIMO and OFMDA	1 × 2.4 GHz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × 6 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 3.9 Gbit/sec max rate 2 ×2:2 MU-MIMO with beamforming	1 × 2.5 Gbps Multigigabit Ethernet port 1 x Management Console port RJ45	802.3at PoE DC power adapter	2x2:2 MU-MIMO a nd OFDMA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering Removable antennas	From: Original price was: £2,085.55.Current price is: £980.73. +VAT (£1,186.68 incl. VAT)
CW9164I-MR	Ultra High-performance, Wi-Fi 6E (802.11ax) with 6GHz band with Multigigabit Ethernet to futureproof deployments, with UL/DL MU-MIMO and OFMDA	1 × 2.4 GHz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × 6 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 7.49 Gbit/sec max rate 4 ×4:4 MU-MIMO with beamforming	1 × 2.5 Gbps Multigigabit Ethernet port	802.3bt UPoE DC power adapter	4x4:4 MU-MIMO a nd OFDMA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption; Band steering	From: Original price was: £2,003.34.Current price is: £942.07. +VAT (£1,139.90 incl. VAT)
CW9166D1-MR	Ultra High-performance, Wi-Fi 6E (802.11ax) with 6GHz band with Multigigabit Ethernet to futureproof deployments, with UL/DL MU-MIMO and OFMDA	1 × 2.4 GHz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × 6 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 7.78 Gbit/sec max rate 4 ×4:4 MU-MIMO with beamforming	1 × 5 Gbps Multigigabit Ethernet port	802.3bt UPoE DC power adapter	4x4:4 MU-MIMO a nd OFDMA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	From: Original price was: £2,550.95.Current price is: £1,252.90. +VAT (£1,516.01 incl. VAT)
CW9166I-MR	Ultra High-performance, Wi-Fi 6E (802.11ax) with 6GHz band with Multigigabit Ethernet to futureproof deployments, with UL/DL MU-MIMO and OFMDA	1 × 2.4 GHz 802.11b/g/n/ax 1 × 5 GHz 802.11a/n/ac/ax 1 × 6 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 7.78 Gbit/sec max rate 4 ×4:4 MU-MIMO with beamforming	1 × 5 Gbps Multigigabit Ethernet port	802.3bt UPoE DC power adapter	4x4:4 MU-MIMO a nd OFDMA 160 MHz channels Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	From: Original price was: £2,277.15.Current price is: £1,094.63. +VAT (£1,324.50 incl. VAT)
MR70 (EOL)	Basic outdoor/rugged WLAN, very low density deployments	1 × 802.11b/g/n 1 × 802.11a/n/ac 1.3 Gbit/s max rate 2×2:2 MU-MIMO with beamforming	1 × Gigabit Ethernet port Integrated omni-directional antennas	802.3af Power over Ethernet DC power adapter	2×2:2 MU-MIMO Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	MR70 is End Of Sale
MR74 (EOL)	Rugged/outdoor general purpose WLAN, outdoor campuses, industrial, point-to-point links, outdoor location services	1 × 802.11b/g/n 1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 1.3 Gbit/s max rate 2×2:2 MU-MIMO with beamforming	1 × Gigabit Ethernet port Four external N-type connectors (antennas sold separately)	802.3af Power over Ethernet	2×2:2 MU-MIMO Priority Voice (802.11e/WMM) Enterprise-grade CPU Hardware-accelerated encryption Higher-density support Band steering	MR74 is End Of Sale
MR76	Rugged/outdoor general purpose WLAN, outdoor campuses, industrial, point-to-point links, outdoor location services	1 × 802.11b/g/n/ax 1 × 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 1.5Gb/s max rate 2.4 GHz 2x2:2 and 5 GHz 2x2:2 with beamforming	1 × Gigabit Ethernet port Four external N-type connectors (antennas sold separately)	802.3af Power over Ethernet	2×2:2 MU-MIMO Priority Voice (802.11e/WMM) Enterprise-grade CPU Hardware-accelerated encryption Higher-density support Band steering	From: Original price was: £1,884.92.Current price is: £925.78. +VAT (£1,120.19 incl. VAT)
MR78	Basic outdoor/rugged WLAN, very low density deployments	1 × 802.11b/g/n/ax 1 × 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 1.5Gb/s max rate 2.4 GHz 2x2:2 and 5 GHz 2x2:2 with beamforming	1 × Gigabit Ethernet port Integrated omni-directional antennas	802.3af Power over Ethernet	2×2:2 MU-MIMO Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering	From: Original price was: £1,368.12.Current price is: £691.24. +VAT (£836.40 incl. VAT)
MR84 (EOL)	Highest performance 802.11ac Wave 2 with Multigigabit for tough RF and high-density environments	1 × 802.11b/g/n/ac 1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 2.5 Gbit/s max rate 4×4:4 MU-MIMO with beamforming	1 × 2.5 Gbps Multigigabit Ethernet port 1 × Gigabit Ethernet port Four external N-type connectors (antennas sold separately)	802.3af Power over Ethernet	4×4:4 MU-MIMO 160 MHz channels Highest-density support Priority Voice (802.11e/WMM) Enterprise-grade CPU Hardware-accelerated encryption Band steering	MR84 is End Of Sale
MR86	Highest performance 802.11ac Wave 2 with Multigigabit for tough RF and high-density environments	1 × 802.11b/g/n/ax 1 × 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 3 Gb/s max rate 2.4 GHz 4x4:4 and 5 GHz 4x4:4 with beamforming	1 × 2.5 Gbps Multigigabit Ethernet port Four external N-type connectors (antennas sold separately)	802.3af Power over Ethernet	4×4:4 MU-MIMO 80 MHz channels Highest-density support Priority Voice (802.11e/WMM) Enterprise-grade CPU Hardware-accelerated encryption Band steering	From: Original price was: £2,623.90.Current price is: £1,645.19. +VAT (£1,990.68 incl. VAT)
CW9171I	Ultra High-performance, Wi-Fi 7 (802.11be) with 2.4GHz, 5GHz or 6GHz bands, 6.1 Gbps dual-radio aggregate frame rate for futureproof deployments, with UL/DL MU-MIMO and OFMDA	1x 2.4 GHz 802.11b/g/n/ax/be 1x 5 GHz 802.11a/n/ac/ax/be 1x 6 GHz 802.11 ax/be 1x 2.4 GHz IoT Radio 1x 2.4 GHz Bluetooth Low Energy (BLE)	1x100M/1000M/2.5G Multigigabit Ethernet (RJ-45) uplink Management console port (RJ-45) with default speed of 115200 bps USB 2.0 at 4.5W DC power jack, 54V	802.3at/af PoE+	2×2:2 MU-MIMO and OFDMA, up to 320 MHz channels on 6GHz band, with a combined dual–radio aggregate frame rate of 6.1 Gbps	From: Original price was: £685.36.Current price is: £514.02. +VAT (£621.96 incl. VAT)
CW9172I	Ultra High-performance, Wi-Fi 7 (802.11be) with 2.4GHz, 5GHz and 6GHz bands, 9 Gbps tri-radio aggregate frame rate for futureproof deployments, with UL/DL MU-MIMO and OFMDA	1x 2.4 GHz 802.11b/g/n/ax/be 1x 5 GHz 802.11a/n/ac/ax/be 1x 6 GHz 802.11 ax/be 1x 2.4 GHz IoT Radio 1x 2.4 GHz, 5 GHz, and 6 GHz tri-band radio 1x 2.4 GHz Bluetooth Low Energy (BLE)	1x 100M / 1G / 2.5G BASE-T Ethernet (RJ45) 1x USB 2.0 at 4.5W 1x DC power jack	802.3bt/at/af UPoE	2×2:2 MU-MIMO and OFDMA, up to 320 MHz channels on 6GHz band, with a combined tri–radio aggregate frame rate of 9 Gbps	From: Original price was: £1,247.40.Current price is: £623.66. +VAT (£754.63 incl. VAT)
CW9172H	High-performance, Wi-Fi 7 (802.11be) with 6 GHz 2x2:2, 5 GHz 2x2:2 and 2.4 GHz 2x2:2 radio offer a combined tri–radio aggregate frame rate of 9 Gbps*, with up to 5764 Mbps in 6 GHz band, 2882 Mbps in 5 GHz band and 344 Mbps in 2.4 GHz band	2.4 GHz 802.11b/g/n/ax/be 5 GHz 802.11a/n/ac/ax/be 6 GHz 802.11 ax/be 1x 2.4 GHz, 5 GHz, and 6 GHz tri-band radio 1x 2.4 GHz Bluetooth Low Energy (BLE)	1x 100M / 1G / 2.5G BASE-T Ethernet (RJ45) 2x 100/1,000 BASE-T Ethernet (RJ45) LAN Ports 1x 100/1,000 BASE-T Ethernet (RJ45) LAN port with 802.3af PoE output 1x Passthrough (RJ45) Port 1x Console Port	802.3bt/at/af PoE	2×2:2 MU-MIMO and OFDMA, up to 320 MHz channels on 6GHz band, with a combined tri–radio aggregate frame rate of 9 Gbps	From: Original price was: £1,054.75.Current price is: £619.67. +VAT (£749.80 incl. VAT)
CW9174I	Ultra High-performance, Wi-Fi 7 (802.11be) with 2.4GHz, 5GHz and 6GHz bands, 17.5 Gbps tri-radio aggregate frame rate for futureproof deployments, with UL/DL MU-MIMO and OFMDA	1x 2.4 GHz 802.11b/g/n/ax/be 1x 5 GHz 802.11a/n/ac/ax/be 1x 6 GHz 802.11 ax/be 1x 2.4 GHz IoT Radio 1x 2.4 GHz Bluetooth Low Energy (BLE) 1x dedicated tri-band scanning radio	1x100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45) 1x Management console port (RJ-45) with default speed of 115,200 bps 1x USB 2.0 at 9W 1x DC power jack, 54V, for use with MA-PWR-50WAC power adapter	802.3bt/at/af UPoE	4×4:4 MU-MIMO and OFDMA, up to 320 MHz channels on 6GHz band, with a combined tri–radio aggregate frame rate of 17.5 Gbps	From: Original price was: £1,877.16.Current price is: £985.51. +VAT (£1,192.47 incl. VAT)
CW9174E	Ultra High-performance, Wi-Fi 7 (802.11be) with 2.4GHz, 5GHz and 6GHz bands, 17.5 Gbps tri-radio aggregate frame rate for futureproof deployments, with UL/DL MU-MIMO and OFMDA	Incorporated radios: 1x 2.4 GHz IoT Radio 1x 2.4 GHz Bluetooth Low Energy (BLE) 1x dedicated tri-band scanning radio External radios: Tri-Band Omni-Directional Antenna CW-ANT-T-O2-D8 (not included) or Tri-Band Directional Antenna CW-ANT-T-D2-D8 (not included)	1x100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45) 1x Management console port (RJ-45) with default speed of 115,200 bps 1x USB 2.0 at 9W 1x DC power jack, 54V, for use with MA-PWR-50WAC power adapter	802.3bt/at/af UPoE	4×4:4 MU-MIMO and OFDMA, up to 320 MHz channels on 6GHz band, with a combined tri–radio aggregate frame rate of 17.5 Gbps	From: Original price was: £1,971.26.Current price is: £1,034.91. +VAT (£1,252.24 incl. VAT)
CW9176I	Ultra High-performance, Wi-Fi 7 (802.11be) with 2.4GHz, 5GHz and 6GHz bands, 18 Gbps tri-radio aggregate frame rate for futureproof deployments, with UL/DL MU-MIMO and OFMDA	1x 2.4 GHz 802.11b/g/n/ax/be 2x 5 GHz 802.11a/n/ac/ax/be 1x 6 GHz 802.11 ax/be 1x 2.4 GHz IoT Radio 1x 2.4 GHz, 5 GHz, and 6 GHz tri-band radio 1x 2.4 GHz Bluetooth Low Energy (BLE)	1x 100M / 1G / 2.5G / 5G / 10G BASE-T Ethernet (RJ45) 1x USB 2.0 at 9W	802.3bt/at/af UPoE	4×4:4 MU-MIMO and OFDMA, up to 320 MHz channels on 6GHz band, with a combined tri–radio aggregate frame rate of 18 Gbps	From: £2,414.86 +VAT (£2,921.98 incl. VAT)
CW9176D1	Ultra High-performance, Wi-Fi 7 (802.11be) with 2.4GHz, 5GHz and 6GHz bands, 18 Gbps tri-radio aggregate frame rate for futureproof deployments, with UL/DL MU-MIMO and OFMDA	1x 2.4 GHz 802.11b/g/n/ax/be 2x 5 GHz 802.11a/n/ac/ax/be 1x 6 GHz 802.11 ax/be 1x 2.4 GHz IoT Radio 1x 2.4 GHz, 5 GHz, and 6 GHz tri-band radio 1x 2.4 GHz Bluetooth Low Energy (BLE)	1x 100M / 1G / 2.5G / 5G / 10G BASE-T Ethernet (RJ45) 1x USB 2.0 at 9W	802.3bt/at/af UPoE	4×4:4 MU-MIMO and OFDMA, up to 320 MHz channels on 6GHz band, with a combined tri–radio aggregate frame rate of 18 Gbps	From: Original price was: £2,705.23.Current price is: £1,248.29. +VAT (£1,510.43 incl. VAT)
CW9178I	Ultra High-performance, Wi-Fi 7 (802.11be) with 2.4GHz, 5GHz and 6GHz bands, 24 Gbps quad-radio aggregate frame rate for futureproof deployments, with UL/DL MU-MIMO and OFMDA	1x 2.4 GHz 802.11b/g/n/ax/be 2x 5 GHz 802.11a/n/ac/ax/be 1x 6 GHz 802.11 ax/be 1x 2.4 GHz IoT Radio 1x 2.4 GHz, 5 GHz, and 6 GHz tri-band radio 1x 2.4 GHz Bluetooth Low Energy (BLE)	2x 100M/ 1G/ 2.5G/ 5G/ 10G BASE-T Ethernet (RJ45) 1x Management console port (RJ-45) 1x USB 2.0 at 9W	802.3bt UPoE Required for full operation	4×4:4 MU-MIMO and OFDMA, up to 320 MHz channels on 6GHz band, with a combined quad–radio aggregate frame rate of 24 Gbps	From: Original price was: £2,898.80.Current price is: £1,502.19. +VAT (£1,817.65 incl. VAT)
